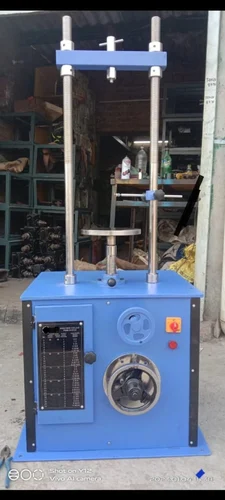

CBR Load Frame
CBR Load Frame
| Automation Grade | Automatic |
| Usage/Application | Industrial |
| Finishing | Color Coated |
| Display Type | Digital |
| Material | Mild Steel |
| Voltage | 220V |
| Phase | Single Phase |
Specifications:
| Range | Speed | Traverse | Motor | Power required |
| 20000 kg × 1 kg least count | Variable 1 to 10 mm/min | 25 mm to 600 mm | 3 Hp, 415, 3 phase induction motor | 415 V AC, 3500 W, three phase |
| 10000 kg × 1 kg least count | Variable 1 to 10 mm/min | 25 mm to 600 mm | 2 Hp, 415, 3 phase induction motor | 415 V AC,2500 W, three phase |
| 5000kg × 1 kg least count | Variable 1 to 10 mm/min | 25 mm to 600 mm | 2 Hp, 415, 3 phase induction motor | 415 V AC, 1500 W, three phase |
| 25 mm to 600 mm | 1 Hp, 415, 3 phase induction motor |
